NEW T3/t4 T04e V-band Turbocharger Turbo .63 A/r W/ Internal Wastegate Universal

Application:
Perfect for all 4 or 6 CYL, 1.5L-2.5L Engines 400HP+ Boost

Product Specific:
Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: V-Band Flange
Cooling Type: Oil Cooled
Wastegate: Internal Wastegate
Horse Power: Boost Horse Power up to 420HP

Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: 2 Years

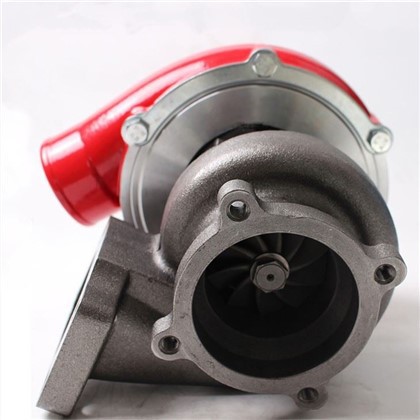

Accessories: You will get exactly as shown in the picture above

Compressor:
Trim: 44
Inducer Diameter:50.5 mm
Exducer Diameter:76 mm
A/R:0.5

Turbine:
Trim:73
Inducer Diameter:65.5 mm
Exducer Diameter:55.9 mm
A/R:0.63

Our Advantage :

1. 100% BALANCING TEST，This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2. All of the materials we use are the best materials,and we believe that only the best materials will guarantee the life of the turbo.
Turbine Wheel： the special K418 alloy to achieve stability under high temperatures up to 900 degrees Celsius, and never use K13 Inconel alloy.
Turbine housing : Ductile iron QT450-10 can withstand temperatures up to 700 degrees Celsius
Aluminum blades : Precision machining forging. The lightweight design enables reduced noise and increased response without compromising comfort or longevity
3. Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage

Friendly Reminder:
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
* Replace, repair or reconnect air cleaner to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating
* Ensure exhaust outlet are well sealed by welding.

NOTE:
1. This turbocharger is only for 1.5L -2.5L engine.
2. Air filter is Necessary to complete the turbocharger. We will not be responsible for any damage which caused by disobey the 2 rules.
3. This is universal application turbo, so modification might be
